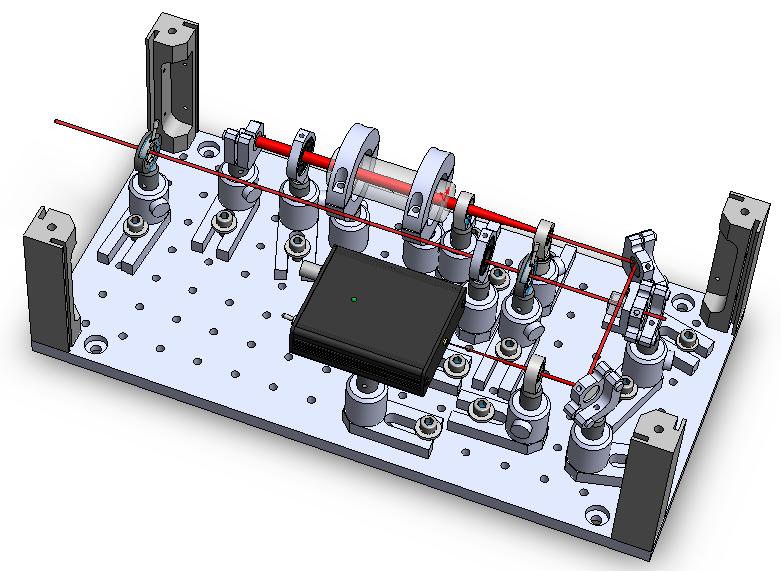

The RF Modulation Spectroscopy Setup is able to generate a locking error signal on top of line of atomic reference gas spectra. This special preprocessed error signal stabilize the frequency of the emitted laserradiation in combination with the LB2001 and LB2005 and results in a frequency stabilized narrow linewidth of Sachers lasersystems.



Gascells and wavelenghts

• designed for different gascells and reference gases
• wavelenght from 400nm - 1650nm

Gascell heating

• gascell heating option (necessary for gases like potassium)

Alignment

• precisely prealigned
• intuitive handling

Excellent signal to power performance

• detects lowest laser radiation
• selectable conversion of  photodiode

Handling

• portable applicable

High detector bandwidth

• decector bandwidth up to 20MHz

Performance Example:

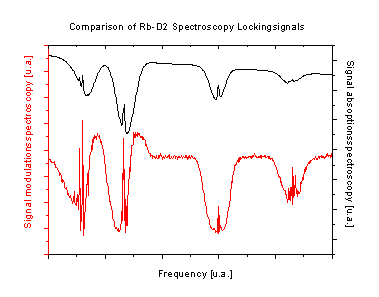

The figure above shows the comparison signals between absoption spectroscopy and modulation spectroscopy setup.



Optical power input: typ. < 1mW
Electrical power requirement: 12V-15V ;  <30mA
Detector bandwith: 20MHz
Wavelenght regime: 400nm  - 1650nm
