RF Modulation Spectroscopy Setup

Spectroscopy Setup for Pound-Drever-Hall stabilization

Description

The RF Modulation Spectroscopy Setup is a precise prealigned, fiber coupled, spectroscopic platform. With its help it is possible to stabilize external cavity diode laser also as DFB laser systems on top of line to atomic references via fast laser modulation.
The RF Modulation Spectroscopy Setup is able to generate a locking error signal on a the top of the line of an atomic reference vapor spectrum. This error signal enables to stabilize the wavelength of the emitted laser radiation in combination with the LB2001 and LB2005 and results in a frequency stabilized narrow linewidth of tunable laser systems.


Vapor cells and wavelenghts
  • designed for different vapor cells and references
  • wavelenght from 400nm - 1650nm
Gascell heating
  • vapor cell heating (optional)
  • recommended for alcali atoms with low vapor pressure (Potassium, etc.)
Alignment
  • precisely prealigned
  • intuitive handling

Fiber Coupling
  • FC/APC connector (optional)

Excellent signal to power performance
  • detects lowest laser radiation
  • selectable conversion of  photodiode
Handling
  • portable device

High detector bandwidth
  • decector bandwidth up to 20MHz

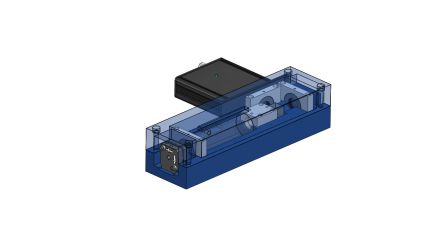

Product Layount (CAD):

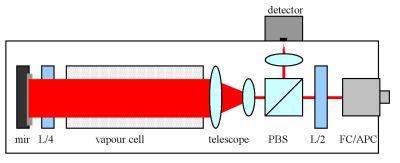

Product Layount (schematic):
 More DetailsType Isotope D1 D2 PriceBuy
Online
 RF Spectro-K (nat)Potassium Nat. Mix. 770nm 767nm REGISTERAvailability OK

 RF-Spectro Rb (nat)Rubidium Nat. Mix. 795nm 780nm REGISTERAvailability OK

 RF-Spectro Rb (85)Rubidium Rb 85 795nm 780nm REGISTERAvailability OK

 RF-Spectro Rb (87)Rubidium Rb 87 795nm 780nm REGISTERAvailability OK

 RF Spectro-Cs (nat)Caesium Nat. Mix. 895nm 852nm REGISTERAvailability OK

Available from Stock | Manufactured on Request | Temporarily not Available
€ = EUR, $ = USD
Last shop update: 02/08/24
• Caesium Spectroscopy - D1 Line
• Caesium Spectroscopy - D2 Line
• Rubidium Spectroscopy - D1 Line
• Rubidium Spectroscopy - D2 Line

Technical Documents
